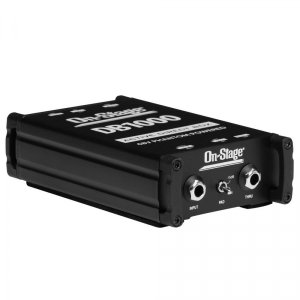

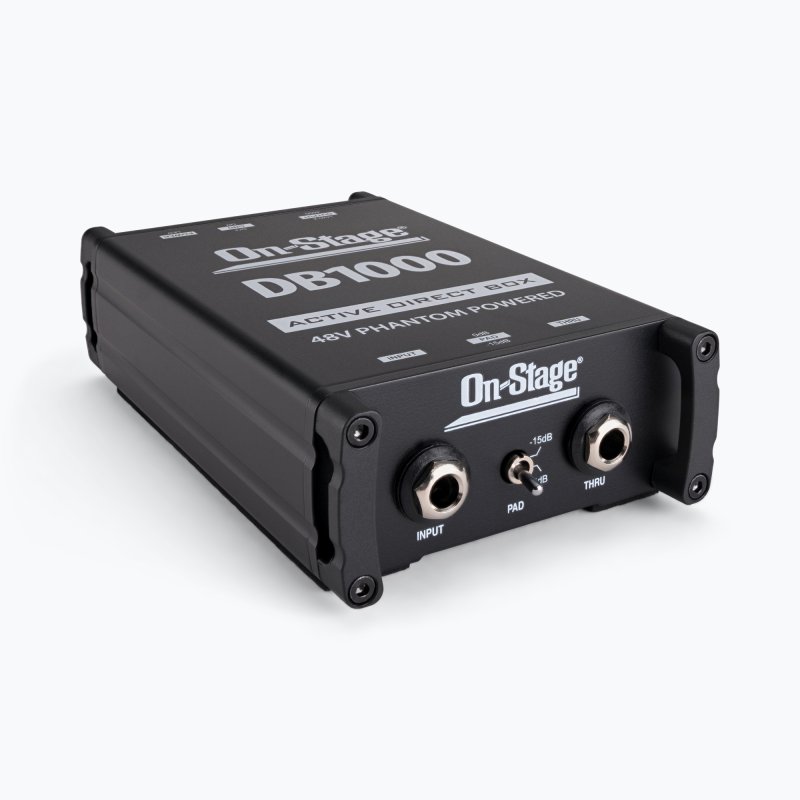

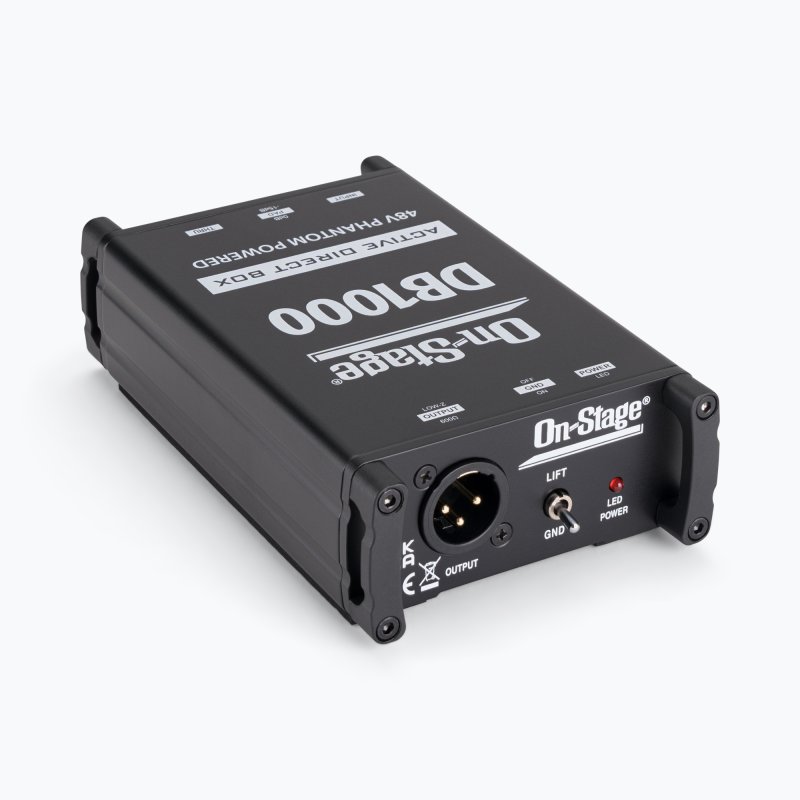

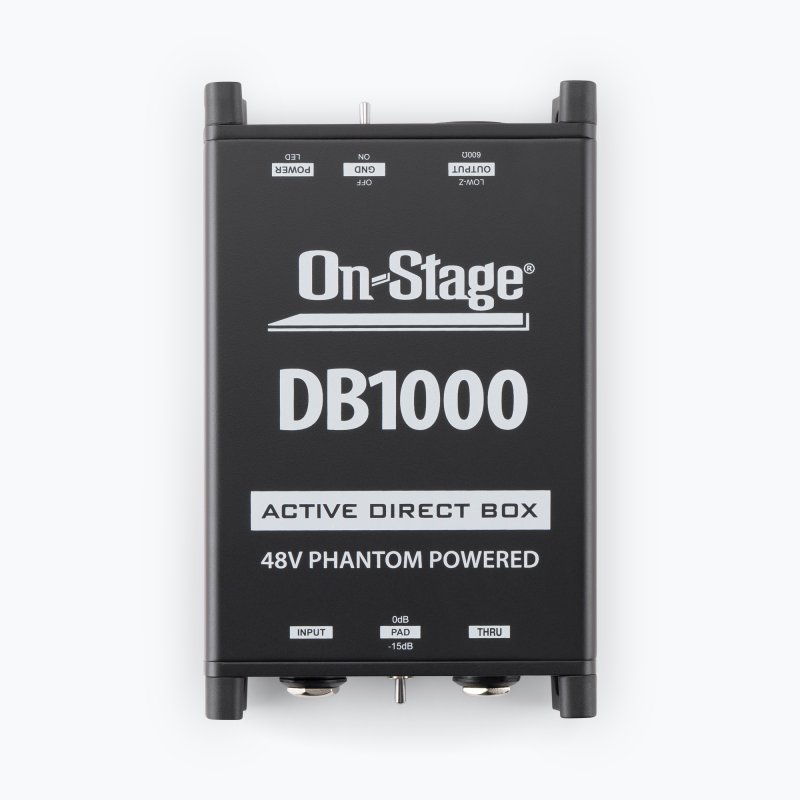

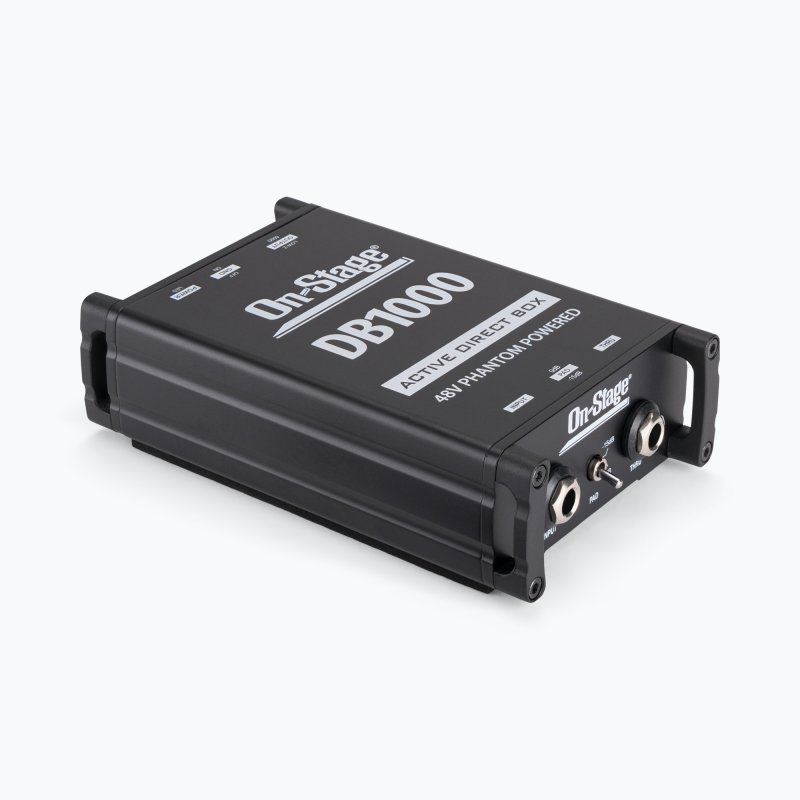

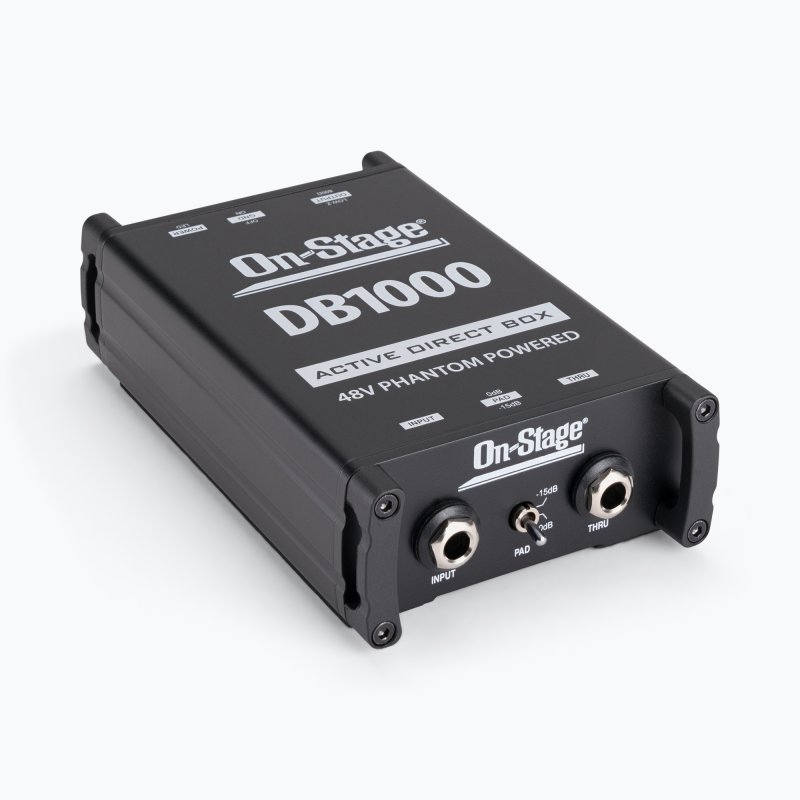

On-Stage

Active DI Box

Model: DB1000
UPC: 659814125562
-15 dB pad switch prevents clipping
Active circuit features a high-quality transformer for low distortion and an isolated signal path
Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
Output signal can be sent via a long cable to a mixer or PA system without frequency loss

Customers who bought this product also purchased

Product Properties

  • Application
  • Acoustic guitars, bass guitars, keyboards, and more
  • Bullet points
  • -15 dB pad switch prevents clipping
    Active circuit features a high-quality transformer for low distortion and an isolated signal path
    Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
    Output signal can be sent via a long cable to a mixer or PA system without frequency loss
  • Construction
  • Metal w/ nylon bumpers
  • Dimensions
  • 6" x 3.5" x 1.5"
  • Frequency Response
  • 10Hz - 40kHz
  • Ground lift
  • Yes
  • Input Resistance
  • 220K Ohms
  • Inputs
  • 1/4"
  • Output
  • XLR
  • Pad
  • 15dB
  • Power
  • Phantom
  • Product Type
  • Direct Box
  • Weight
  • 0.70 lb

Description:

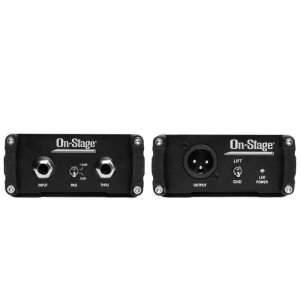

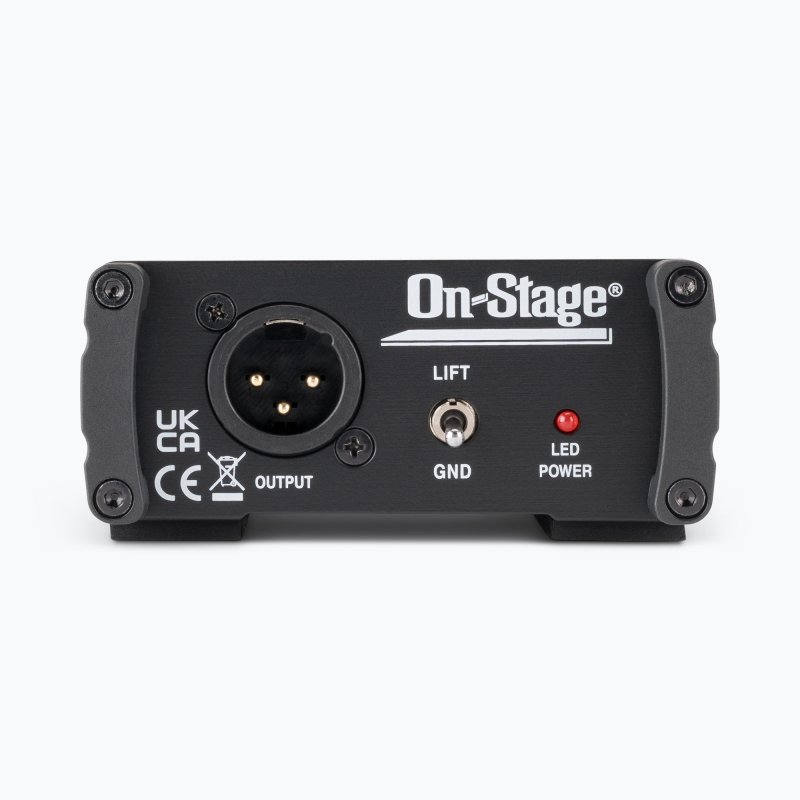

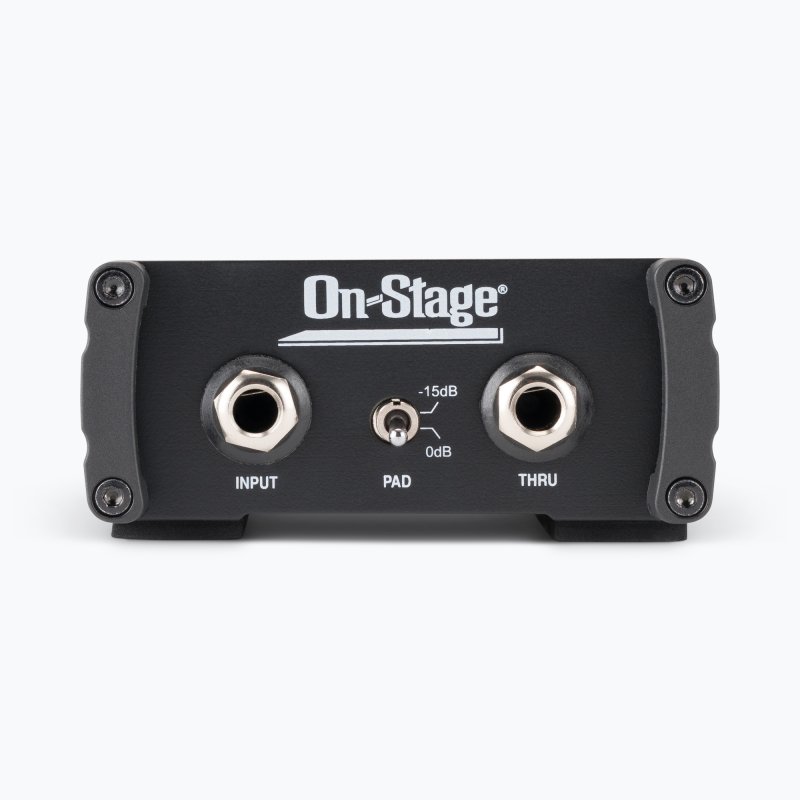

Our DB1000 Active DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include a -15 dB pad switch to prevent clipping, a throughput connector to pass unaltered signal to a stage amp, and a ground-lift switch to defeat ground-loop hum. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
