On-Stage

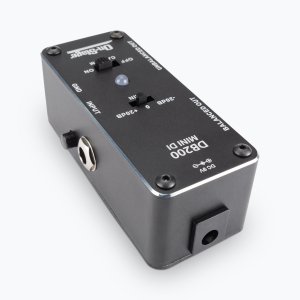

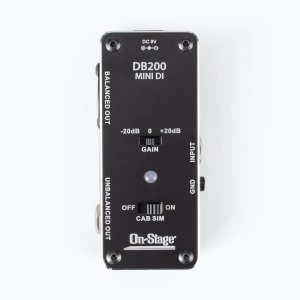

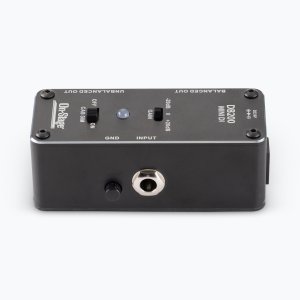

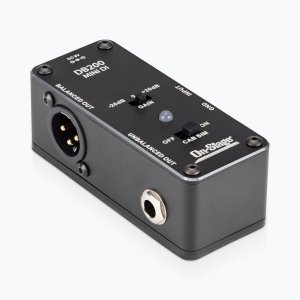

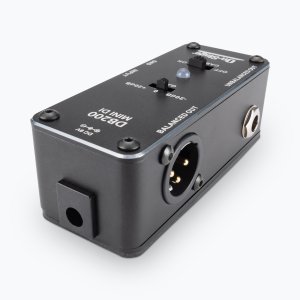

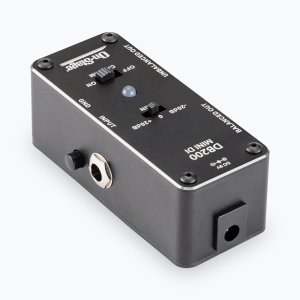

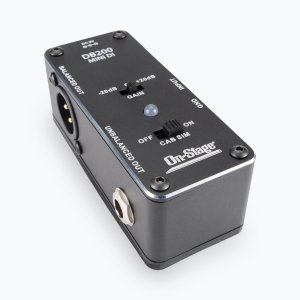

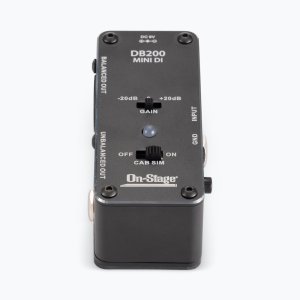

Mini DI Box

Model: DB200
UPC: 659814141173
Accepts a wide range of audio sources including guitars, basses, and keyboards
Cab simulator sends the input signal through an emulated amp to a mixer or PA system
Compact footprint saves space on pedal boards (includes hook-and-loop mounting strips)
Gain/pad switch boosts weak signals or prevents clipping

Customers who bought this product also purchased

Product Properties

  • Bullet points
  • Accepts a wide range of audio sources including guitars, basses, and keyboards
    Cab simulator sends the input signal through an emulated amp to a mixer or PA system
    Compact footprint saves space on pedal boards (includes hook-and-loop mounting strips)
    Gain/pad switch boosts weak signals or prevents clipping
  • Color
  • Black
  • Current Draw
  • 12mA
  • Dimensions
  • 3.6" x 1.5" x 1.3"
  • Input Impedance
  • 1M Ohms
  • Output Impedance
  • 1k Ohms
  • Power Supply
  • 9V DC, center negative (not included)

Description:

Our DB200 Mini DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. A cab simulator switch enables sending the input signal through an emulated amp directly to a mixer without using a physical amp. There's a switch for either +20 dB of gain to boost weak signals or a -20 dB pad to prevent clipping from louder sources. A ground-lift switch defeats ground-loop hum. When not using the DI, the true-bypass switch eliminates the circuitry of the pedal from the signal path. Balanced and unbalanced outputs provide the option to send the signal to an amp, a mixer, or both. This pedal includes hook-and-loop strips for convenient pedalboard mounting. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
