On-Stage

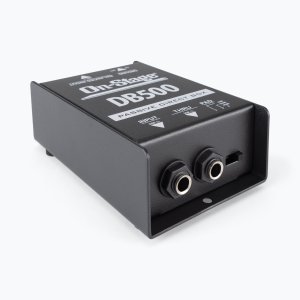

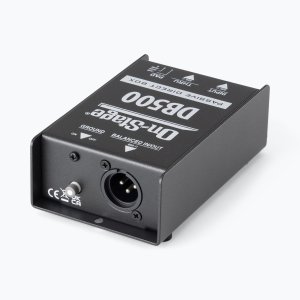

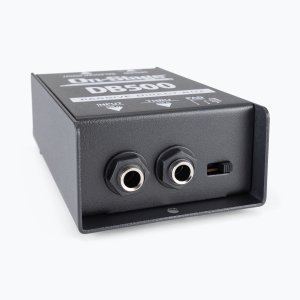

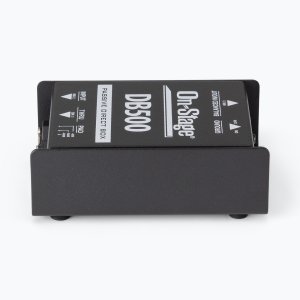

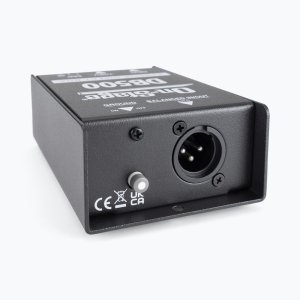

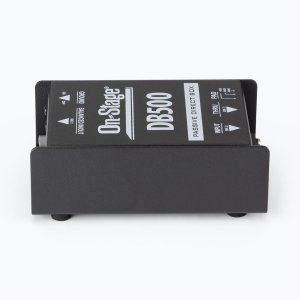

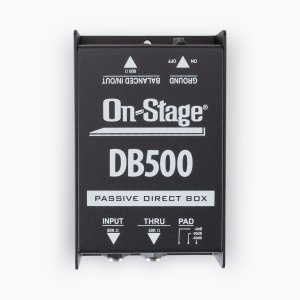

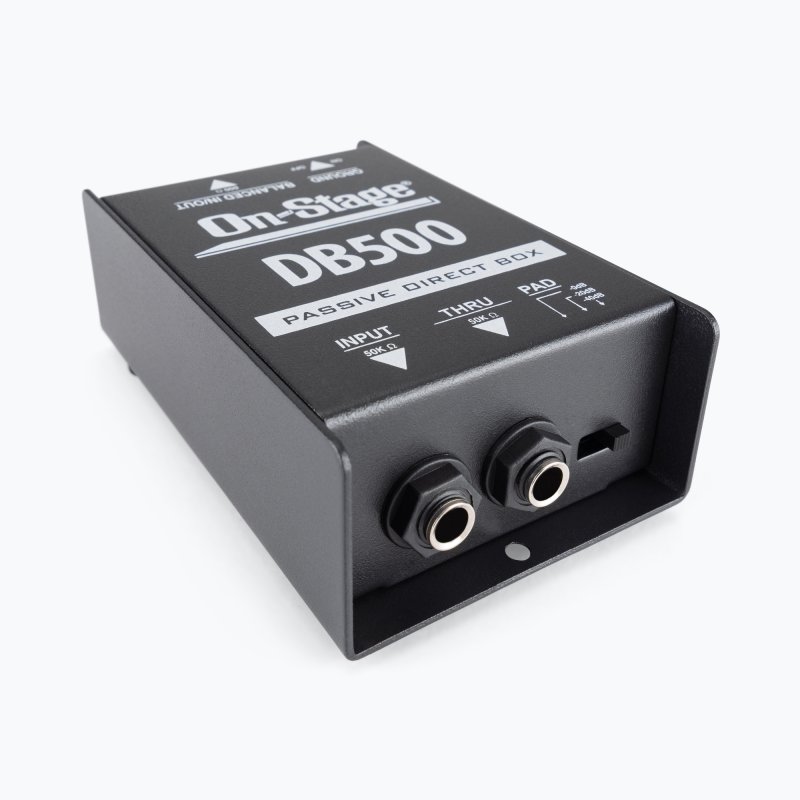

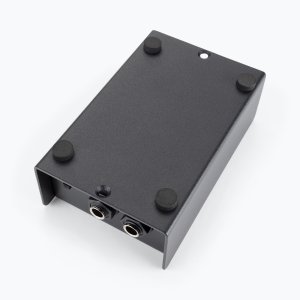

Passive DI Box

Model: DB500
UPC: 659814883837
Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
High-quality transformer for low distortion and an isolated signal path
Output signal can be sent via a long cable to a mixer or PA system without frequency loss
Passive circuit does not require a power supply or batteries

Customers who bought this product also purchased

Product Properties

  • Application
  • Acoustic guitars, bass guitars, keyboards, and more
  • Bullet points
  • Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
    High-quality transformer for low distortion and an isolated signal path
    Output signal can be sent via a long cable to a mixer or PA system without frequency loss
    Passive circuit does not require a power supply or batteries
  • Construction
  • Metal
  • Dimensions
  • (W)4.75" x (H)1.375" x (D)2.875"
  • Input Impedence
  • 350K Ohms
  • Inputs
  • 1/4"
  • Output
  • XLR
  • Output Impedence
  • 80 Ohms
  • Pad
  • 20dB, 40dB, Ground Lift: Yes
  • Power
  • Passive/not required
  • Product Type
  • Direct Box
  • Weight
  • 0.5 lb

Description:

Our DB500 Passive DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
