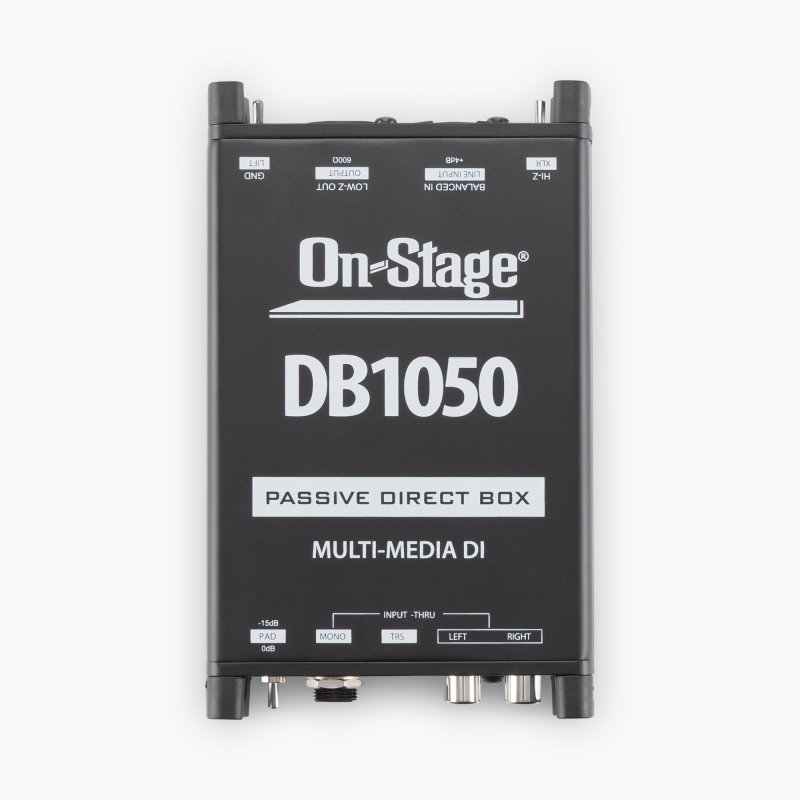

On-Stage

Passive Multimedia DI Box

Model: DB1050
UPC: 659814125579
Converts a line-level stereo input to a balanced, low-impedance mono (XLR) output
High-quality transformer for low distortion and an isolated signal path
Output signal can be sent via a long cable to a mixer or PA system without frequency loss
Passive circuit does not require a power supply or batteries

Customers who bought this product also purchased

Product Properties

  • Application
  • Computers, mp3 players, keyboards, projectors, and DJ equipment
  • Bullet points
  • Converts a line-level stereo input to a balanced, low-impedance mono (XLR) output
    High-quality transformer for low distortion and an isolated signal path
    Output signal can be sent via a long cable to a mixer or PA system without frequency loss
    Passive circuit does not require a power supply or batteries
  • Construction

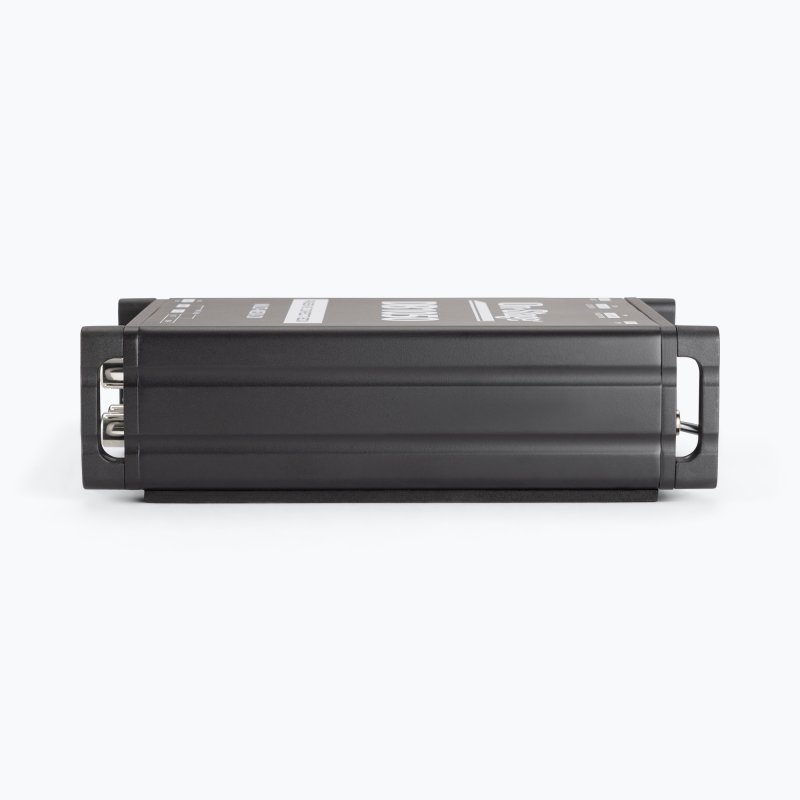

  • Metal w/ nylon bumpers
  • Dimensions
  • 6" x 3.5" x 1.5"
  • Frequency Response
  • 10Hz - 40kHz
  • Ground lift
  • Yes
  • Input Resistance
  • 220K Ohms
  • Inputs

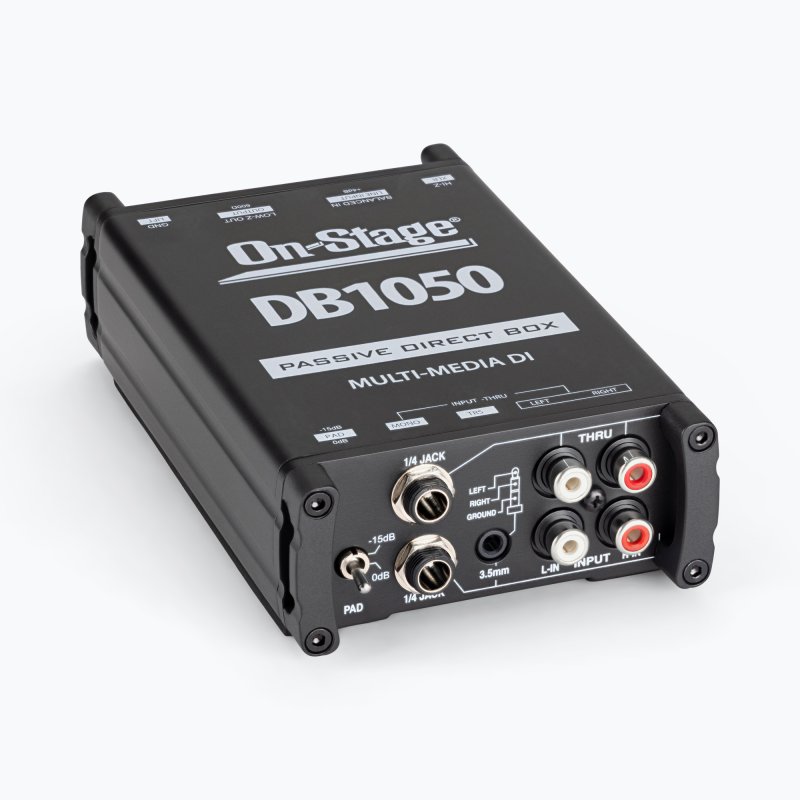

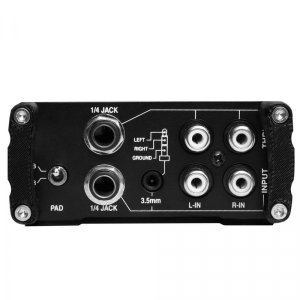

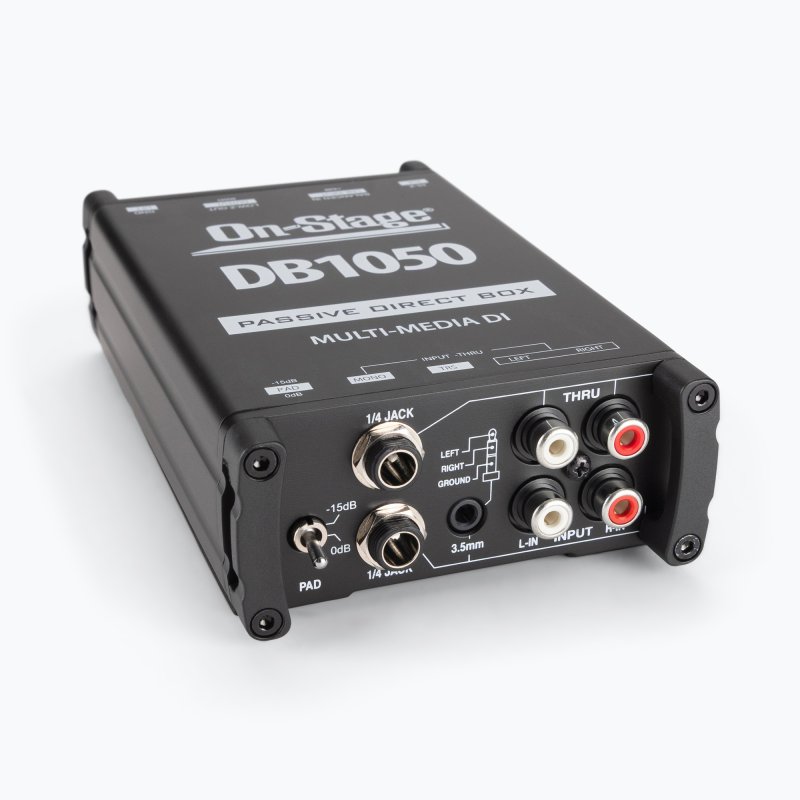

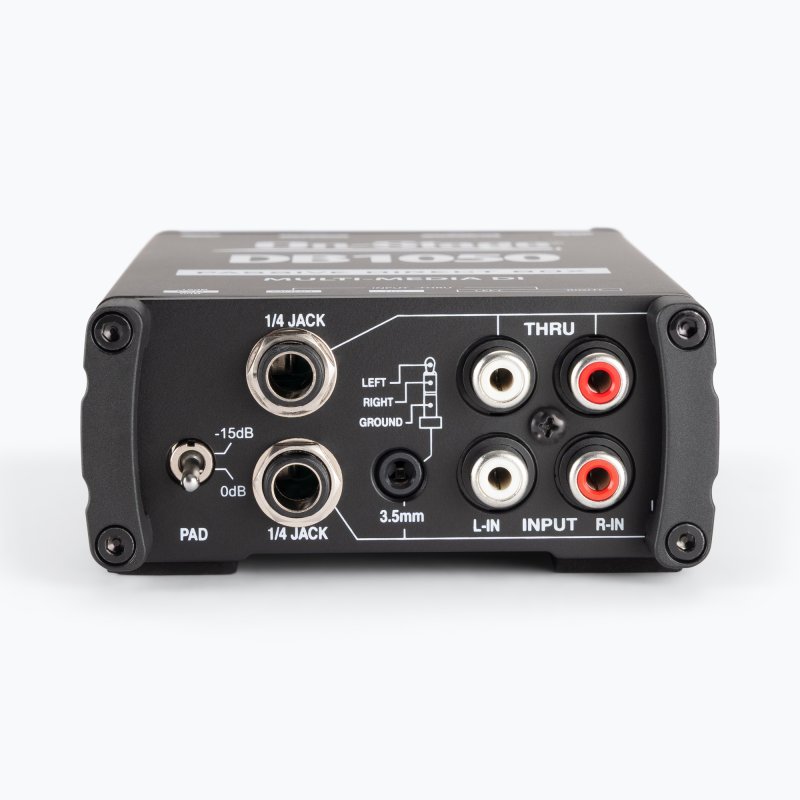

  • Stereo 1/4", 3.5mm, stereo RCA, and XLR
  • Output

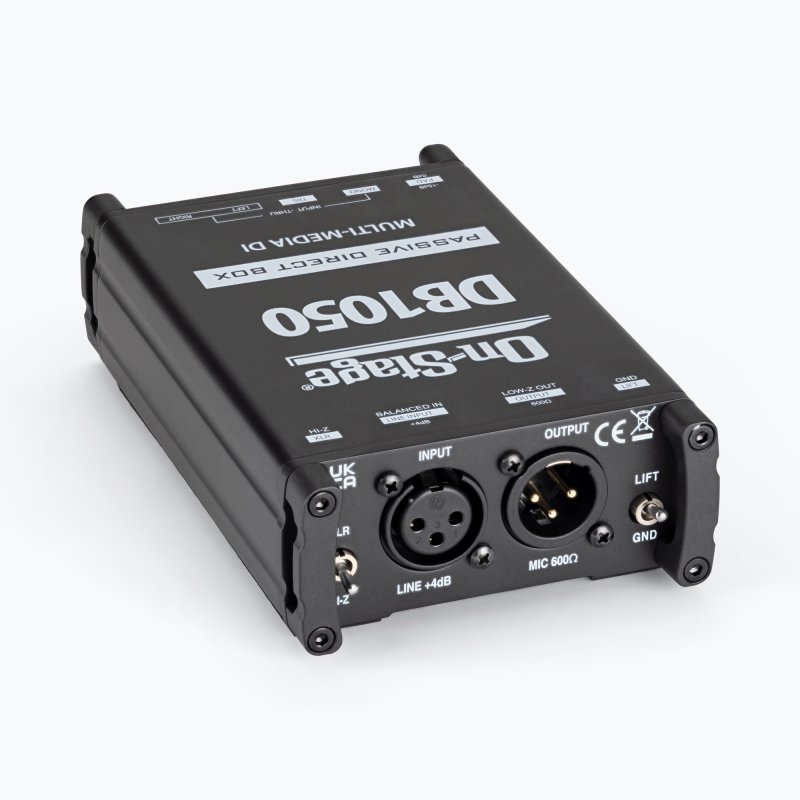

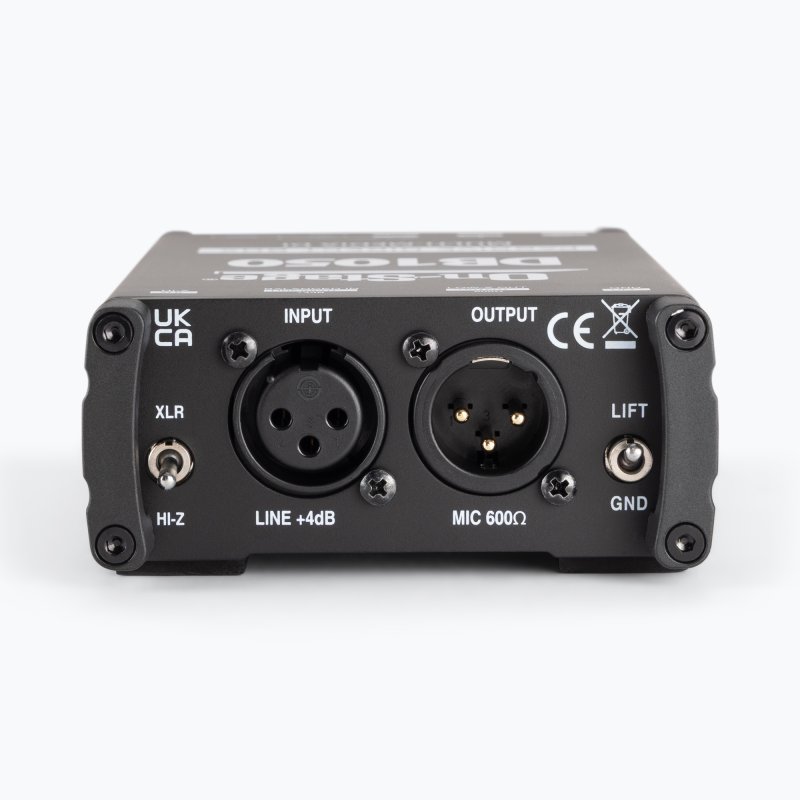

  • Mono XLR Low-Z out
  • Pad
  • 15dB
  • Power
  • Passive/not required
  • Product Type
  • Direct Box
  • Weight
  • 0.70 lb

Description:

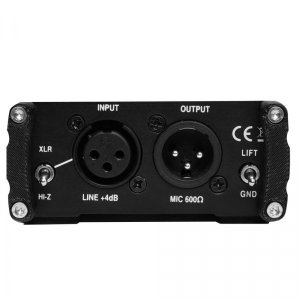

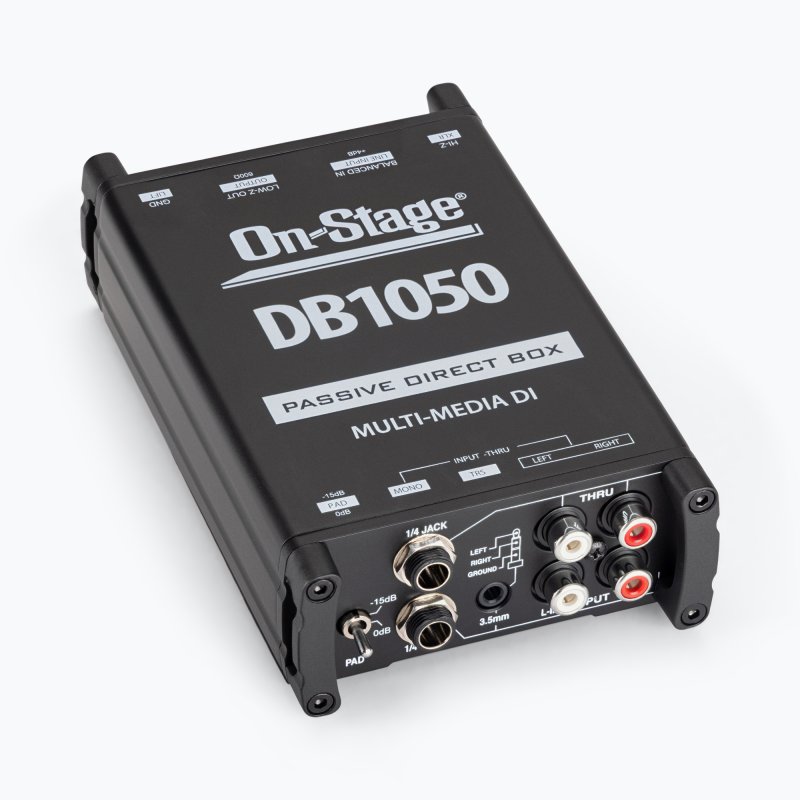

Our DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
