On-Stage

Consumer to Pro DI

Model: DB100
UPC: 659814148622

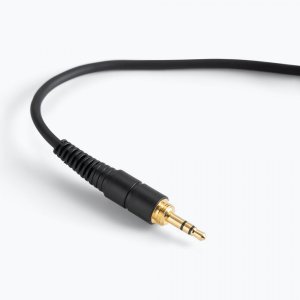

3.5 mm plug connects to common audio sources such as laptops, tablets, and MP3 players
Converts an unbalanced audio input to a balanced, mic-level output signal
Integrated 10' cable for ease of reaching audio sources
Passive operation does not require a power supply
Rugged metal enclosure ensures reliable performance

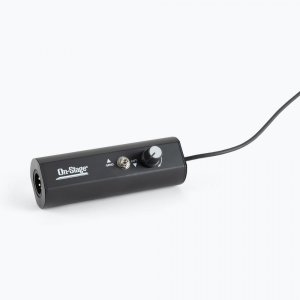

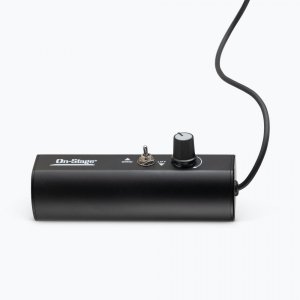

Transformer and ground-lift switch eliminate electrical and ground-loop noise

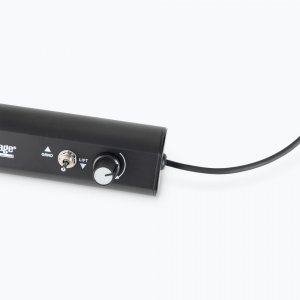

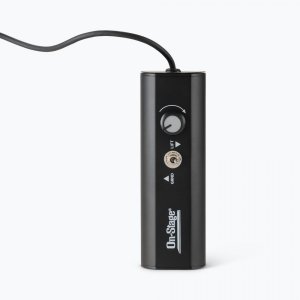

Volume knob enables adjustment of the output level between the source and amp

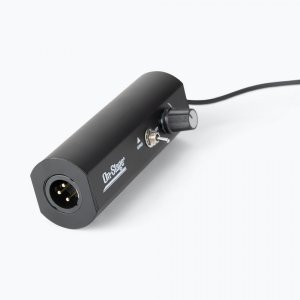

XLR output jack for compatibility with stage snakes and PA-system inputs
more
Specification Sheet Specification Sheet
Specification Sheet (Download)

Customers who bought this product also purchased

Product Properties

  • Application
  • Convert consumer products to balanced output
  • Bullet points
  • 3.5 mm plug connects to common audio sources such as laptops, tablets, and MP3 players
    Converts an unbalanced audio input to a balanced, mic-level output signal
    Integrated 10' cable for ease of reaching audio sources
    Passive operation does not require a power supply
    Rugged metal enclosure ensures reliable performance
    Transformer and ground-lift switch eliminate electrical and ground-loop noise
    Volume knob enables adjustment of the output level between the source and amp
    XLR output jack for compatibility with stage snakes and PA-system inputs
  • Cable Length
  • 10'
  • Color
  • Black
  • Dimensions
  • 4.7" (L) x 1.6" (W) x 1.3" (H)
  • Distortion
  • 0.008%
  • Frequency
  • 20 Hz-20 kHz
  • Input Attenuation
  • 20 dB
  • Input Impedance
  • 100K ohms/1KHZ
  • Input to Output
  • Stereo to mono
  • Output Impedance
  • 2.5K-7.5K ohms/1KHZ
  • Product Type
  • DI Box
  • Signal-to-Noise Ratio
  • 87 dB

Description:

The DB100 Laptop DI Box eliminates noise and ground loops that often occur when using consumer audio devices with a PA system. Simply connect its 3.5 mm plug to the headphone jack of a laptop or digital music player, and this compact DI automatically converts the audio signal to a balanced, mic-level XLR output suitable for use with high-powered amplifiers. The volume knob enables additional adjustment of the output level while the ground-lift switch provides control over hum caused by ground loops. Passive and transformer based, this DI does not use a power supply and delivers electrical isolation for convenient, reliable sound preservation.
